South Bend Components C612C Vertical Windlass Anchor System with Capstan| 600W 12V DC, 992 LB Pulling Power, 316 Stainless Steel, Chain 1/4 Inch HT G4 and Rope 1/2 Inch| for Boats 20-35 ft

South Bend Components C612C Vertical Windlass Anchor System with Capstan| 600W 12V DC, 992 LB Pulling Power, 316 Stainless Steel, Chain 1/4 Inch HT G4 and Rope 1/2 Inch| for Boats 20-35 ft

South Bend Components
SKU:
SBC-WK-C612C-1/4
$999.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
  • [ Specifications ]: Model Number: SBC-WK-C612C-1/4 Motor Power: 600W Voltage: 12V DC Maximum Pulling Power: 992 lbs (450 kg) Maximum Working Load: 330 lbs (150 kg) Current Draw: 33A Line Speed: 69 ft/min (21 m/min) Circuit Breaker: 60A Rope and Chain Compatibility: 1/4 Inch HT G4 Chain, 1/2 Inch (12mm) 3-Strand Rope Capstan: Integrated for manual rope cranking Weight: 10 kg (22 lbs)

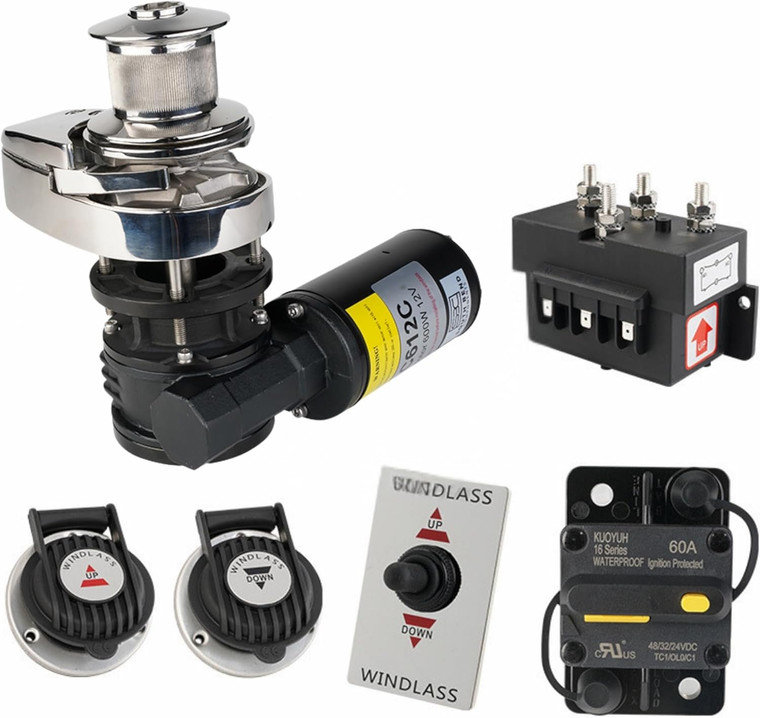

  • [INCLUDED COMPONENTS] Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 600W. Gypsy: Chain and Rope. Includes 4-Wire Solenoid, 60A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template
  • [ COMPLETE WINDLASS KIT ]: Includes a 4-wire solenoid, 60A circuit breaker, up/down foot switch, rocker switch, manual top-cap handle, mounting hardware, and owner manual for a comprehensive solution.
  • [ HIGH-QUALITY MARINE-GRADE MATERIALS ]: Constructed from polished 316 stainless steel and hot-forged components, this windlass is built to resist corrosion and handle high-load conditions.
  • [ ROPE AND CHAIN VERSATILITY ]: Compatible with 1/4 inch HT G4 chain and 1/2 inch (12mm) 3-strand rope, this windlass supports a wide range of anchoring setups to meet your specific needs.
  • [ POWERFUL ANCHOR SYSTEM WITH CAPSTAN ]: Equipped with a 600W motor for a maximum pulling capacity of 992 lbs and an integrated capstan for manual rope cranking, ideal for versatile marine applications.
  • [ FAST LINE SPEED FOR EFFICIENCY ]: Boasts a line speed of 69 feet per minute, ensuring quick and reliable anchor deployment and retrieval for efficient operation.
  • [ USER-FRIENDLY CAPSTAN FEATURE ]: The integrated capstan adds the capability to manually crank ropes like a winch, making this windlass a versatile tool for various marine tasks.
  • [ QUIET AND COMPACT DESIGN ]: Vertical under-deck installation minimizes noise and provides a clean, unobtrusive profile above deck for optimal space utilization.
