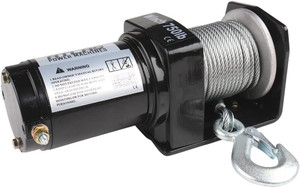

South Bend Components Atlas Power Machines ATV/UTV Electric Winch Kit, 9500-lb.

South Bend Components Atlas Power Machines ATV/UTV Electric Winch Kit, 9500-lb.

South Bend Components
SKU:
‎SBCAPMEW9500-01
$274.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
  • Heavy duty-sealed contactor with positive load control for power input and output;Powerful motor and three-stage planetary gear system provide faster linear speed and lower ampere traction under load
  • South Bend Components Atlas Power Machines winches for portability; outstanding duty cycle
  • With a strong and steady pull
Manufacturer ‎South Bend Components
Part Number ‎SBCAPMEW9500-01
Item model number ‎SBCAPMEW9500-01
Size ‎9500 lb
Color ‎9500 lb Off-road Electric Winch
Power Source ‎DC
Voltage ‎24 Volts
Wattage ‎4000 watts
Horsepower ‎5.5 hp
Batteries Included? ‎No
Batteries Required? ‎No

Rated line pull: 9500LBS(4300kgs) single line Motor: 4.0KW/5.5HP 12V, 4.8KW/6.44HP 24V, Series Wound
Control: Remote switch,12ft(3.7m)lead
Gear train: 3 Stage Planetary Gear reduction ratio: 195.8:1
Clutch: Sliding Ring Gear
Braking Action:Two Way, Automatic In-The-Drum
Drum Dimensions: Φ2.5"x8.8"(Φ63.5mmx224mm)
Cable(Dia X L): Φ21/64" x94' (Φ8.3mmx28m)
Fairlead: 4-Way Roller Fairlead
Wireless Remote Control: Optional
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge,72"(183mm) Finish: Black powder coat
Overall Dimensions: 21.1" x 6.3" x 8.6"(537mmx160mmx218mm)
Mounting Bolt Pattern: 254mmx114.3mm
Packing size: 57x19x34.5cm 1PC/CTN
Weight: N.W. 26kgs G.W. 27Kgs\

Important information

Wattage:        4000 watts
Bulb Voltage:  24 volts
